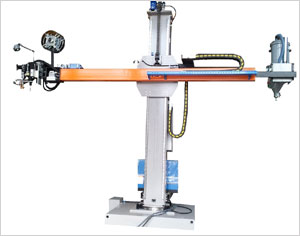

Column&Boom (Manipulator)

Features

Standard column and boom manipulators are used to locate a weld head to a desired position for welding in a stable and secure manner
Worm Gearbox with self-locking feature Precision-machined rail.
Rack & Pinion horizontal movement via soild state inverter.
Counter-weight system to ensure smooth vertical travel.
Limit switches in all motions, including travelling.
Safety Catch in the unlikely event of Roller-Chain breakage.
Standard supply of power source bracket and controller basket.
For some application with structure allows almost any options to be included such as full length walkway, on-tow-spooled carriage, operator's platform, motorized column slewing etc.
Height up to 12 meters and a horizontal stroke of 10 meters. (Availability of Standard Boom and telescopic Booms.)
A smooth 360-degree manual rotation.
A standard safety include, anti-fall device and limit switches for all motions
Movable carriage or fixed stand.

Main Benefits

Ability to maintain weld head over weld joint in a stable position .
Ability to have multi-weld stations using only one weld head, increasing return on investment.
Welding is performed using GTAW, PAW, GMAW, FCAW and SAW.
Able to achieve consistent weld results
Able to maintain weld head over weld joint in a stable position during the weld
Increases arc-on time and overall productivity
Provides ability to have multi-weld stations using only one weld head, increasing your return on investment
Ability to have two welding process at one welding station by using both ends of the boom

Application

• Tank Welding
• Pipe Welding
• Wind Tower
• Saw
• Heavy dut
